Decision Tree Regression

• CART: Classification and Regression trees. 분류, 회귀 모두에 적용될 수 있는 알고리즘
  • 회귀에서는 종속변수가 연속형 변수

Preprocessing

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import warnings

warnings.filterwarnings('ignore')

dataset = pd.read_csv('_data/04.csv')
x = dataset.iloc[:, 1:-1].values
y = dataset.iloc[:, -1].values

Modeling

from sklearn.tree import DecisionTreeRegressor

regressor = DecisionTreeRegressor()

# 모델 학습
regressor.fit(x, y)

DecisionTreeRegressor()

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

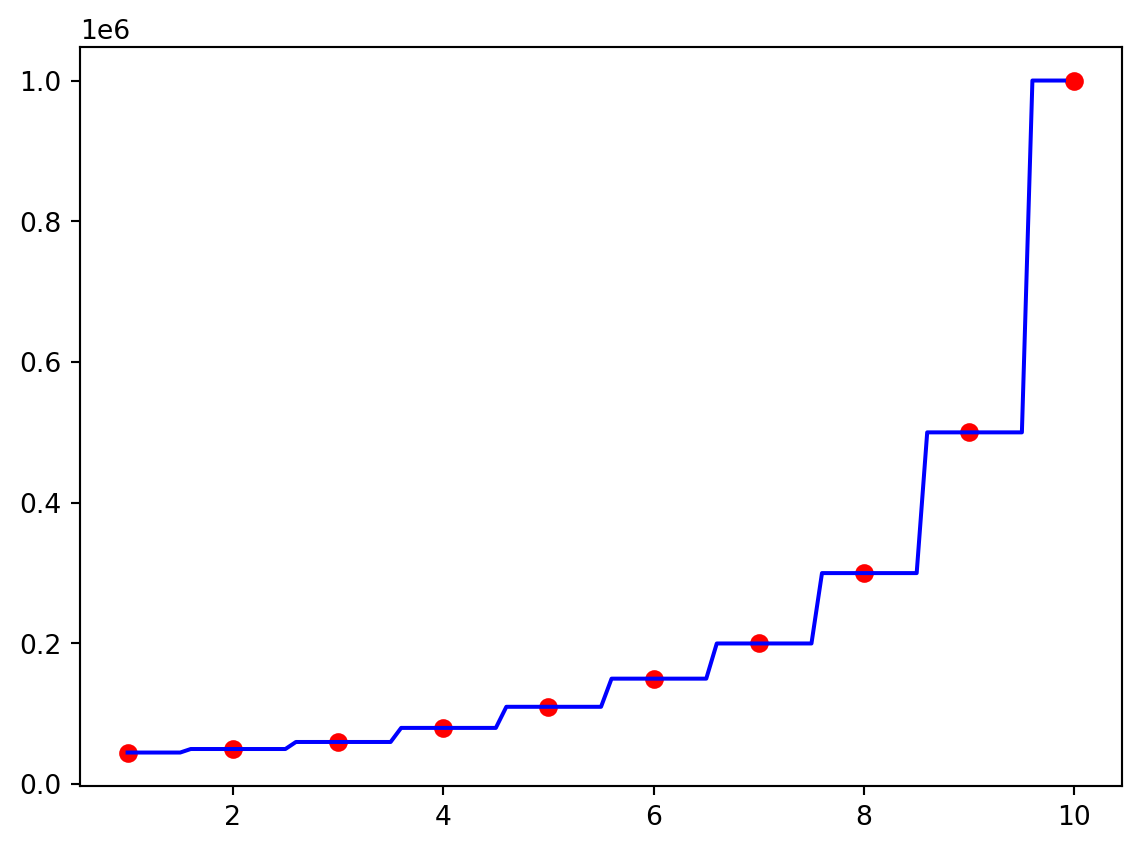

Visualization

x_grid = np.arange(min(x), max(x), 0.1)
x_grid = x_grid.reshape((len(x_grid), 1))
plt.scatter(x, y, color='red')
plt.plot(x_grid, regressor.predict(x_grid), color='blue')
plt.show()
