Amazon CloudWatch

Matrics

  • every service sends metrics to CloudWatch
  • namespace is a container for metrics
  • metric is a variable to monitor
  • dimension is a name/value pair that is attributed to a metric
  • up to 30 dimensions per metric
  • timestamp is the time of the data point
  • stream data to destination near real-time

logs

  • log data is stored indefinitely
  • log group is a container for logs
  • log stream is a sequence of log events
  • log event is a record of some activity
  • SDK, Elastic Beanstalk, ECS, Lambda, CloudTrail, VPC Flow Logs, Route 53, API Gateway, CloudWatch Unified Agent can send logs to CloudWatch Logs
  • log subscription: send logs to Lambda, Kinesis, ElasticSearch, S3

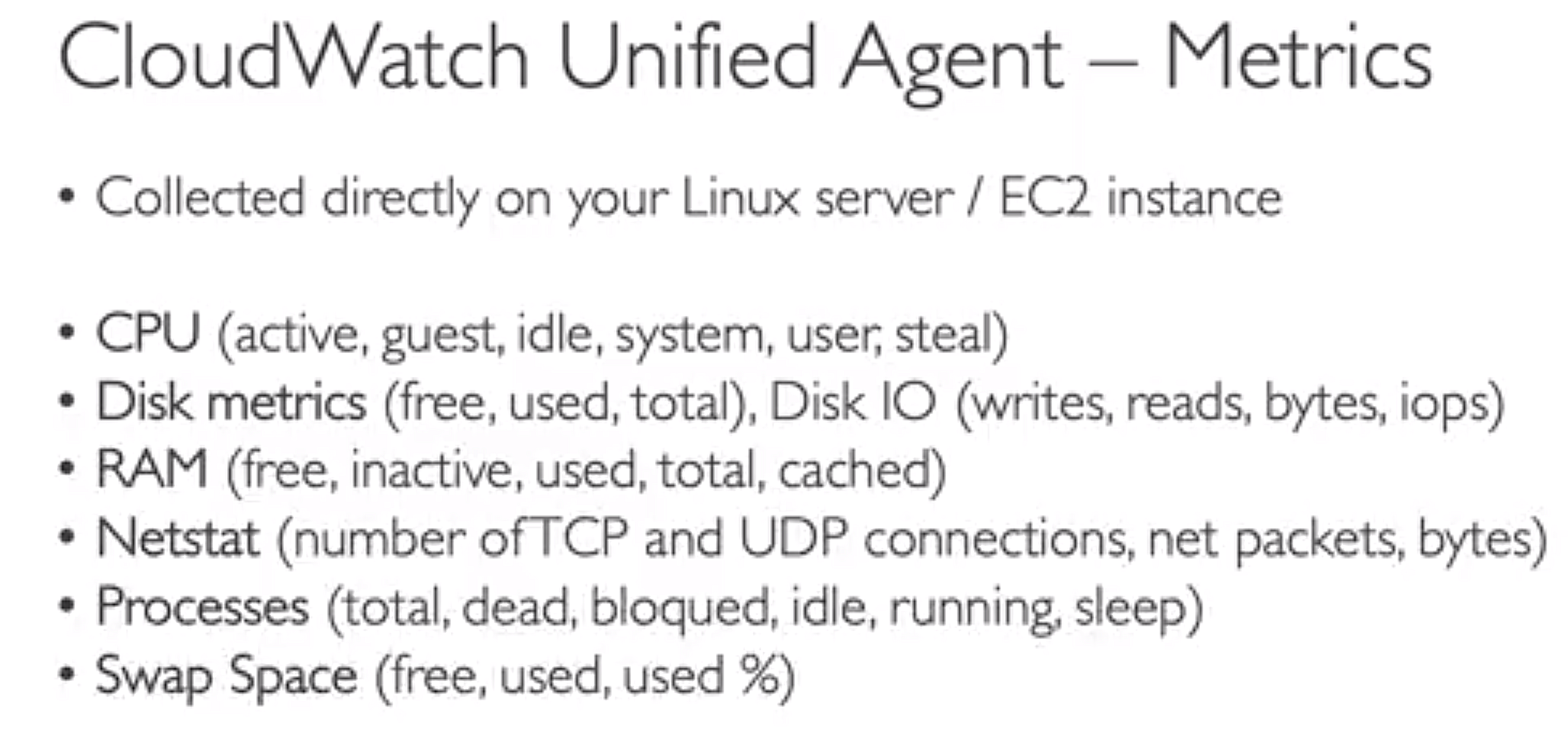

cloudwatch agent

  • collect more system-level metrics cloudwatch agent

CloudWatch Alarms

  • alarm is a notification that is sent when a metric is in breach of the threshold
  • state: OK, ALARM, INSUFFICIENT_DATA
  • target: stop, terminate, reboot, recover, start, or snapshot an instance / trigger an Auto Scaling action / send a notification to an SNS topic
  • single metric alarm, composite alarm, anomaly detection alarm

CloudWatch Events (EventBridge)

  • cron jobs
  • event is a change in state
  • rule is a description of an event pattern
  • target is a resource that is invoked when a rule is triggered
  • event bus is a container for events
  • event pattern is a JSON object that describes a set of events to match

AWS CloudTrail

  • CloudTrail is a service that enables governance, compliance, operational auditing, and risk auditing of your AWS account in all region or single region
  • trail is a configuration that enables delivery of events as log files to an Amazon S3 bucket
  • 90 days retention period ## Management Events
  • management events provide information about management operations that are performed on resources in your AWS account ## Data Events
  • data events provide information about the resource operations performed on or within a resource
  • by default, data events are not logged

Insights Events

  • insights events provide insights into the performance and availability of your AWS Account

AWS Config

  • config is a service that enables you to assess, audit, and evaluate the configurations of your AWS resources
