분류 - 결정 트리

머신 러닝
공개

2025년 7월 27일

개요

  • 결정 노드가 많아지면 과적합이 발생할 수 있음
  • 가능한 한 적은 결정 노드로 높은 예측 정확도를 가지려면 데이터를 분류할 때 최대한 많은 데이터 세트가 해당 분류에 속할 수 있도록 규칙을 정해야 함
  • 균일하게 데이터 세트를 구성할 수 있도록 분할하는 것이 필요
  • 균일도만 신경쓰면 되기 때문에 전처리 작업이 필요 없음

파라미터

  • min_samples_split: 노드를 분할하기 위한 최소한의 샘플 수.
  • min_samples_leaf: 말단 노드가 되기 위한 최소한의 샘플 수. 비대칭적 데이터의 경우 특정 클래스의 데이터가 극도로 작을 수 있으므로 작게 설정 필요
  • max_features: 분할을 고려할 feature의 수. default는 None으로 모든 feature를 고려함
  • max_depth
  • max_leaf_nodes

시각화

from sklearn.tree import DecisionTreeClassifier, export_graphviz
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
import graphviz
import warnings

warnings.filterwarnings('ignore')
dt_clf = DecisionTreeClassifier()

iris_data = load_iris()
X_train, X_test, y_train, y_test = train_test_split(iris_data.data, iris_data.target, test_size=0.2)

dt_clf.fit(X_train, y_train)
DecisionTreeClassifier()
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
export_graphviz(dt_clf, out_file="tree.dot", class_names=iris_data.target_names, feature_names=iris_data.feature_names, impurity=True, filled=True)
with open("tree.dot") as f:
    dot_graph = f.read()
graphviz.Source(dot_graph)

import seaborn as sns
import numpy as np

for name, value in zip(iris_data.feature_names, dt_clf.feature_importances_):
    print(f'{name}: {value:.3f}')

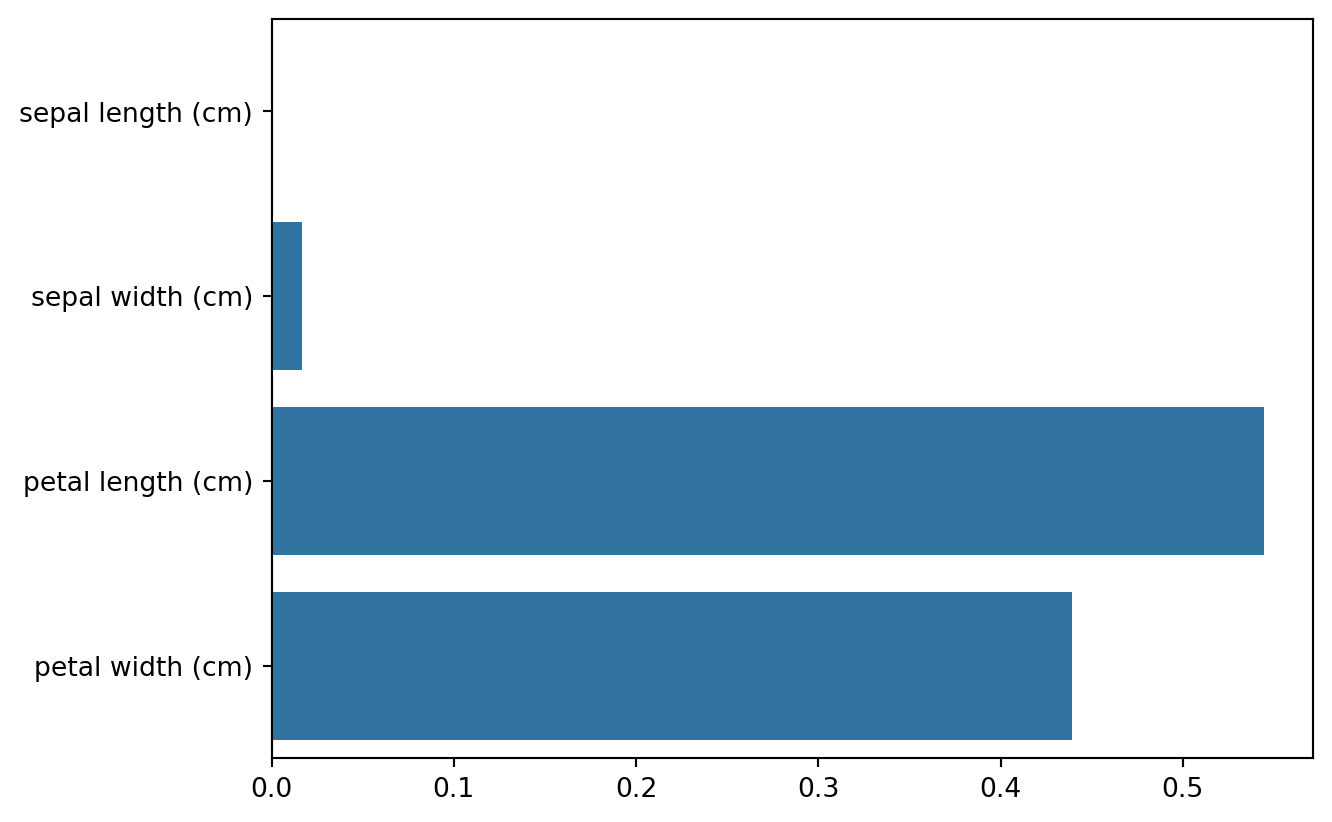

sns.barplot(x=dt_clf.feature_importances_, y=iris_data.feature_names)
sepal length (cm): 0.000
sepal width (cm): 0.017
petal length (cm): 0.544
petal width (cm): 0.439

examples

import pandas as pd


def get_new_feature_name_df(old):
    df = pd.DataFrame(data=old.groupby('column_name').cumcount(), columns=['dup_cnt'])
    df = df.reset_index()
    new_df = pd.merge(old.reset_index(), df, how='outer')
    new_df['column_name'] = new_df[['column_name', 'dup_cnt']].apply(lambda x: x[0] + '_' + str(x[1]) if x[1] > 0 else x[0], axis=1)
    new_df = new_df.drop(['index'], axis=1)
    return new_df

def get_human_dataset():
    feature_name_df = pd.read_csv('_data/human_activity/features.txt', sep='\s+', header=None, names=['column_index', 'column_name'])
    new_feature_name_df = get_new_feature_name_df(feature_name_df)
    feature_name = new_feature_name_df.iloc[:, 1].values.tolist()

    X_train = pd.read_csv('_data/human_activity/train/X_train.txt', sep='\s+', names=feature_name)
    X_test = pd.read_csv('_data/human_activity/test/X_test.txt', sep='\s+', names=feature_name)

    y_train = pd.read_csv('_data/human_activity/train/y_train.txt', sep='\s+', header=None, names=['action'])
    y_test = pd.read_csv('_data/human_activity/test/y_test.txt', sep='\s+', header=None, names=['action'])

    return X_train, X_test, y_train, y_test

X_train, X_test, y_train, y_test = get_human_dataset()
X_train.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 7352 entries, 0 to 7351
Columns: 561 entries, tBodyAcc-mean()-X to angle(Z,gravityMean)
dtypes: float64(561)
memory usage: 31.5 MB
y_train['action'].value_counts()
action
6    1407
5    1374
4    1286
1    1226
2    1073
3     986
Name: count, dtype: int64

default 파라미터 예측

from sklearn.metrics import accuracy_score

dt_clf = DecisionTreeClassifier()
dt_clf.fit(X_train, y_train)
pred = dt_clf.predict(X_test)
accuracy = accuracy_score(y_test, pred)
accuracy
0.8608754665761792

하이퍼파라미터 최적화

from sklearn.model_selection import GridSearchCV

params = {
    'max_depth': [6, 8, 10, 12, 16, 20, 24],
    'min_samples_split': [16]
}

grid_cv = GridSearchCV(dt_clf, param_grid=params, scoring='accuracy',cv=5, verbose=1)
grid_cv.fit(X_train, y_train)

cv_results_df = pd.DataFrame(grid_cv.cv_results_)
cv_results_df[['param_max_depth', 'mean_test_score']]
cv_results_df
Fitting 5 folds for each of 7 candidates, totalling 35 fits
mean_fit_time std_fit_time mean_score_time std_score_time param_max_depth param_min_samples_split params split0_test_score split1_test_score split2_test_score split3_test_score split4_test_score mean_test_score std_test_score rank_test_score
0 1.730651 0.071066 0.004747 0.000612 6 16 {'max_depth': 6, 'min_samples_split': 16} 0.812373 0.870156 0.834694 0.865306 0.869388 0.850383 0.023090 2
1 2.199078 0.058100 0.004974 0.000507 8 16 {'max_depth': 8, 'min_samples_split': 16} 0.812373 0.831407 0.842177 0.870068 0.890476 0.849300 0.027790 3
2 2.591271 0.101800 0.004741 0.000625 10 16 {'max_depth': 10, 'min_samples_split': 16} 0.813732 0.819850 0.837415 0.888435 0.896599 0.851206 0.034711 1
3 2.873773 0.100605 0.005099 0.001333 12 16 {'max_depth': 12, 'min_samples_split': 16} 0.783821 0.817811 0.853741 0.885714 0.882313 0.844680 0.039008 5
4 3.446341 0.244669 0.004722 0.000739 16 16 {'max_depth': 16, 'min_samples_split': 16} 0.803535 0.810333 0.842177 0.878231 0.887075 0.844270 0.034062 6
5 3.307252 0.254648 0.004365 0.000410 20 16 {'max_depth': 20, 'min_samples_split': 16} 0.794018 0.811693 0.831293 0.887075 0.891837 0.843183 0.039608 7
6 3.243996 0.227535 0.004434 0.000333 24 16 {'max_depth': 24, 'min_samples_split': 16} 0.796737 0.809653 0.846259 0.882313 0.895238 0.846040 0.038707 4
best_df_clf = grid_cv.best_estimator_

ftr_importances_values = best_df_clf.feature_importances_
ftr_importances = pd.Series(ftr_importances_values, index=X_train.columns)
ftr_top20 = ftr_importances.sort_values(ascending=False)[:20]

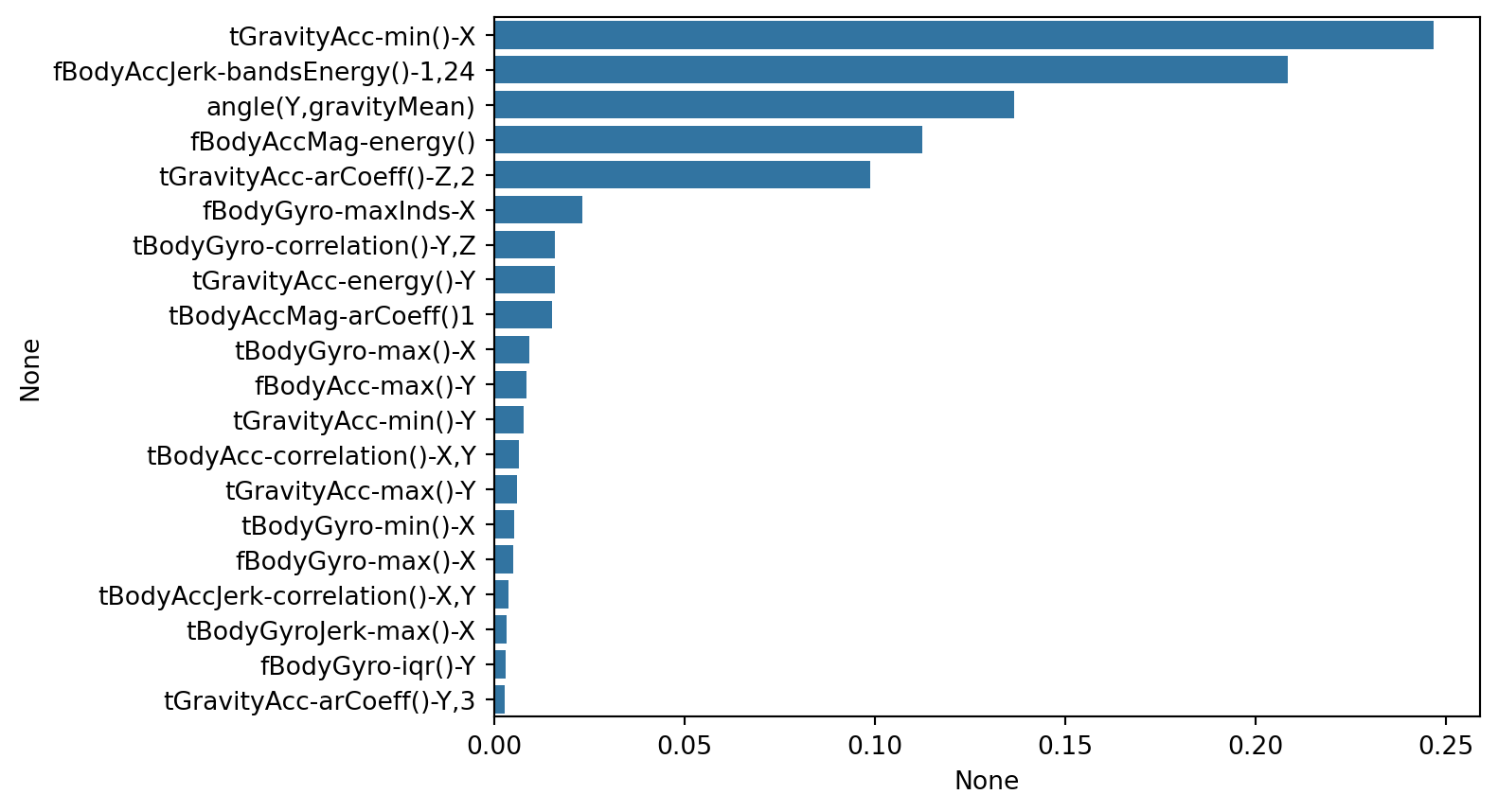

sns.barplot(x=ftr_top20, y=ftr_top20.index)
