이동평균과정 모델링

확률 통계

시계열 분석

공개

2025년 7월 11일

이동편균 모델: 현잿 값이 현재와 과거 오차에 선형적으로 비례한다.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

plt.rcParams['font.family'] = 'Noto Sans KR'

df = pd.read_csv('_data/widget.csv')

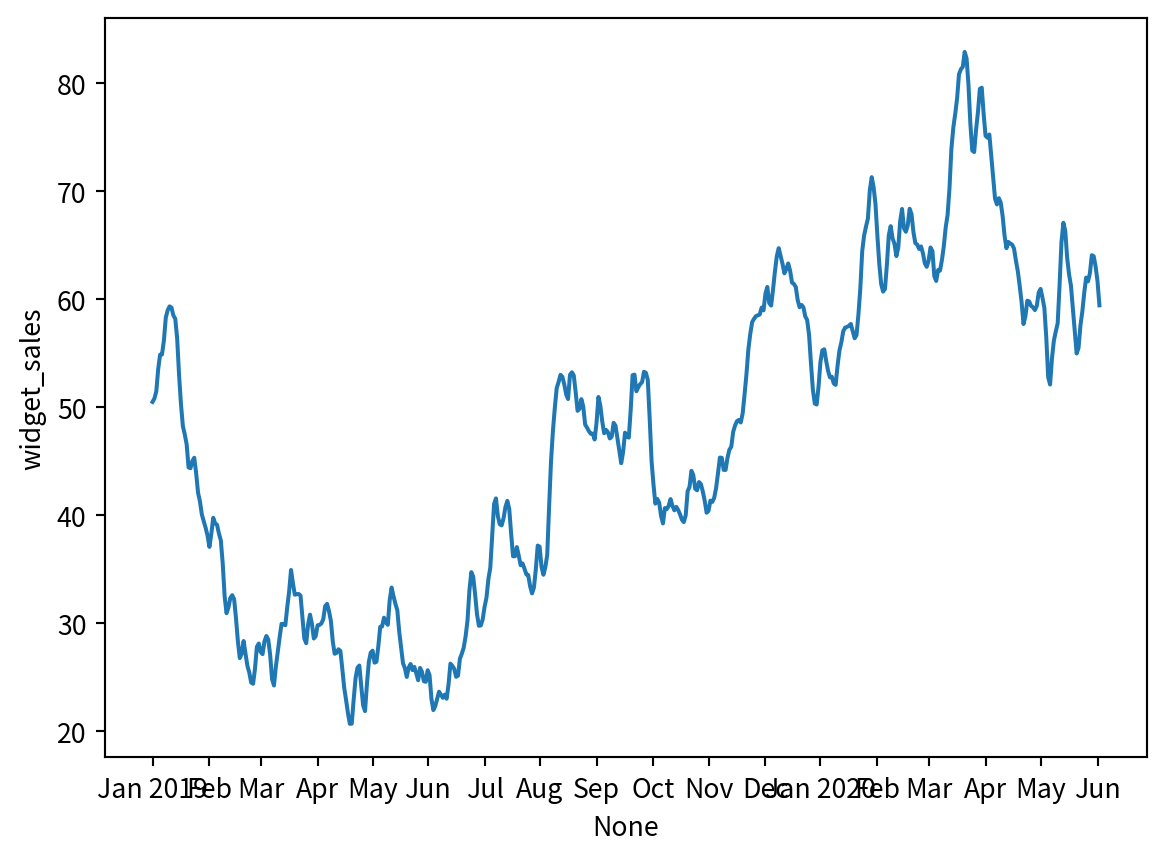

sns.lineplot(data=df, x=df.index, y='widget_sales')
plt.xticks(
    [0, 30, 57, 87, 116, 145, 175, 204, 234, 264, 293, 323, 352, 382, 409, 439, 468, 498],
    ['Jan 2019', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec', 'Jan 2020', 'Feb', 'Mar', 'Apr', 'May', 'Jun'])
plt.show()

from statsmodels.tsa.stattools import adfuller

ADF_result = adfuller(df['widget_sales'])

ADF_result[0], ADF_result[1]

(-1.5121662069359054, 0.5274845352272601)

정상 시계열이 아님. 차분 진행

diff_df = np.diff(df['widget_sales'], n=1)

ADF_result = adfuller(diff_df)
ADF_result[0], ADF_result[1]

(-10.576657780341959, 7.076922818587193e-19)

from statsmodels.graphics.tsaplots import plot_acf

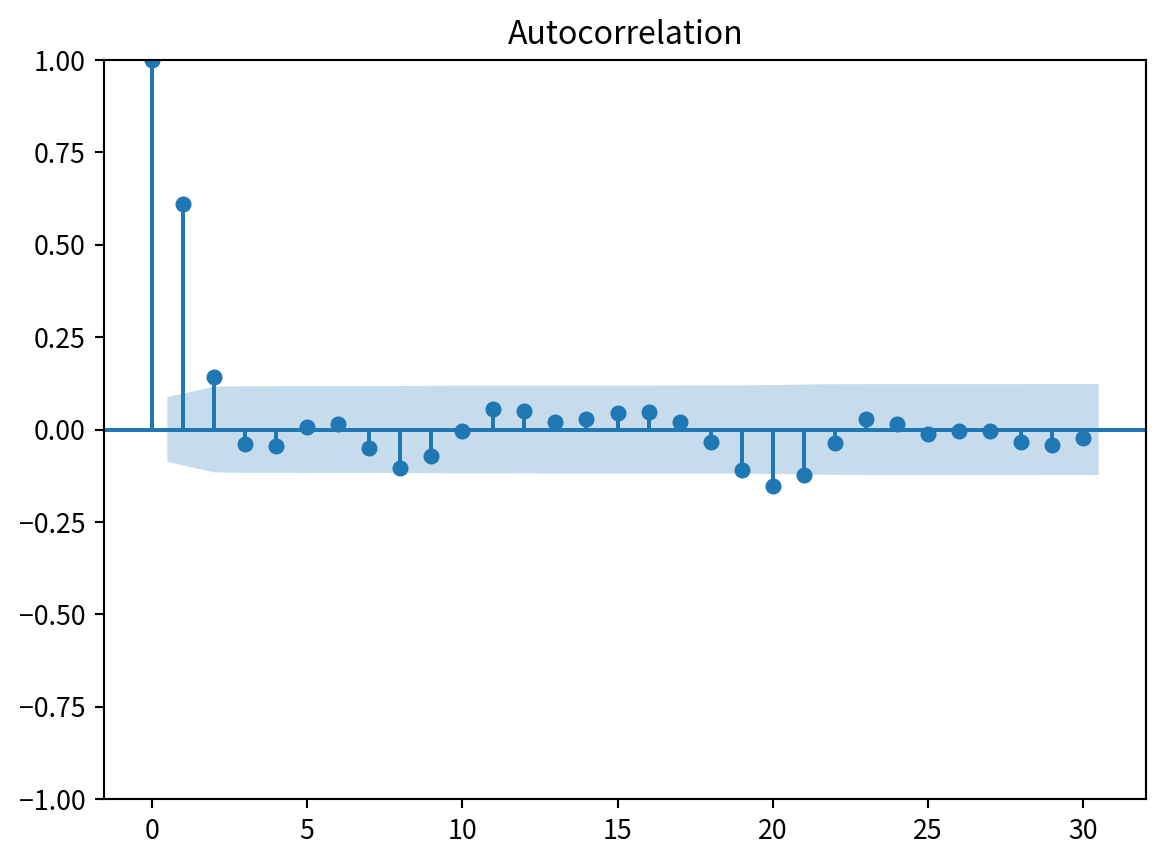

plot_acf(diff_df, lags=30)
plt.show()

지연 2 이후 유의하지 않음.
MA(2) 진행

from sklearn.model_selection import train_test_split

diff_df = pd.DataFrame({'widget_sales_diff': diff_df})
train, test = train_test_split(diff_df, test_size=0.1)

MA(q)는 q 크기까지만 예측 가능.
회귀적으로 예측을 진행해야함

from statsmodels.tsa.statespace.sarimax import SARIMAX

def rolling_forecast(df: pd.DataFrame, train_len: int, horizon: int, window: int, method: str) -> list:
    total_len = train_len + horizon
    if method == 'mean':
        pred_mean = []
        for i in range(train_len, total_len, window):
            mean = np.mean(df[:i].values)
            pred_mean.extend(mean for _ in range(window))
        return pred_mean
    if method == 'last':
        pred_last_value = []
        for i in range(train_len, total_len, window):
            last_value = df.iloc[i-1].values[0]
            pred_last_value.extend(last_value for _ in range(window))
        return pred_last_value
    if method == 'MA':
        pred_MA = []
        for i in range(train_len, total_len, window):
            model = SARIMAX(df[:i], order=(0,0,2))
            res = model.fit(disp=False)
            predictions = res.get_prediction(0, i + window - 1)
            oos_pred = predictions.predicted_mean.iloc[-window:]
            pred_MA.extend(oos_pred)
        return pred_MA

pred_df = test.copy()
TRAIN_LEN = len(train)
HORIZON = len(test)
WINDOW = 2

pred_mean = rolling_forecast(diff_df, TRAIN_LEN, HORIZON, WINDOW, 'mean')
pred_last = rolling_forecast(diff_df, TRAIN_LEN, HORIZON, WINDOW, 'last')
pred_MA = rolling_forecast(diff_df, TRAIN_LEN, HORIZON, WINDOW, 'MA')

pred_df['pred_mean'] = pred_mean
pred_df['pred_last'] = pred_last
pred_df['pred_MA'] = pred_MA

df['pred_widget_sales'] = pd.Series()
df['pred_widget_sales'].iloc[450:] = df['widget_sales'].iloc[450] + pred_df['pred_MA'].cumsum()

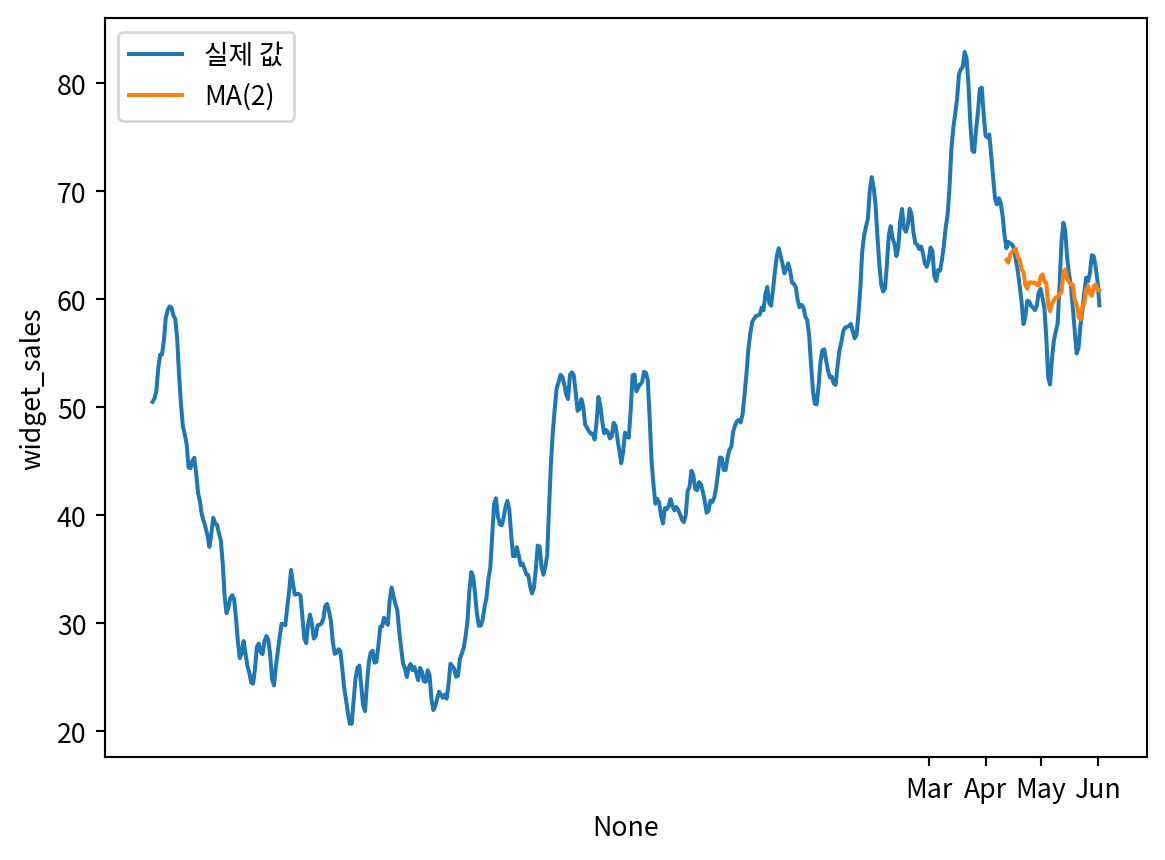

sns.lineplot(data=df, x=df.index, y='widget_sales', label='실제 값')
sns.lineplot(data=df, x=df.index, y='pred_widget_sales', label='MA(2)')
plt.xticks(
    [409, 439, 468, 498],
    ['Mar', 'Apr', 'May', 'Jun'])
plt.show()
