계절성 고려

확률 통계

시계열 분석

공개

2025년 7월 12일

SARIMA 모델

\(SARIMA(p, d, q)(P, D, Q)_m\) 형태로 표현
\(m\): 계절성 주기
\(P, D, Q\): 계절성 AR, 차분, MA 차수

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

plt.rcParams['font.family'] = 'Noto Sans KR'

df = pd.read_csv('_data/air.csv')

from statsmodels.tsa.seasonal import STL

decomposition = STL(df['Passengers'], period=12).fit()

from statsmodels.tsa.stattools import adfuller

df_diff = np.diff(df['Passengers'], n=1)

ADF_result = adfuller(df_diff)
ADF_result[0], ADF_result[1]

(-2.8292668241700025, 0.05421329028382508)

df_diff = np.diff(df_diff, n=12)

ADF_result = adfuller(df_diff)
ADF_result[0], ADF_result[1]

(-17.624862360208343, 3.823046855816035e-30)

from typing import Union
from statsmodels.tsa.statespace.sarimax import SARIMAX

def optimize_SARIMA(endog: Union[pd.Series, list], order_list: list, d: int, D: int, s: int) -> pd.DataFrame:
    results = []
    for order in order_list:
        try:
            model = SARIMAX(endog,
                            order=(order[0], d, order[1]),
                            seasonal_order=(order[2], D, order[3], s),
                            simple_differencing=False).fit(disp=False)
        except:
            continue
        aic = model.aic
        results.append([order, aic])
    result_df = pd.DataFrame(results)
    result_df.columns = ['(p, q, P, Q)', 'AIC']
    result_df = result_df.sort_values(by="AIC").reset_index(drop=True)

    return result_df

from itertools import product

train = df.iloc[:-12]['Passengers']
test = df.iloc[-12:]
#  ps = range(0, 4, 1)
#  qs = range(0, 4, 1)
#  Ps = range(0, 4, 1)
#  Qs = range(0, 4, 1)
#
#  SARIMA_order_list = list(product(ps, qs, Ps, Qs))
#
#
#  d = 1
#  D = 1
#  s = 12
#  SARIMA_result_df = optimize_SARIMA(train, SARIMA_order_list, d, D, s)
#  SARIMA_result_df

SARIMA_model = SARIMAX(train, order=(2, 1, 1), seasonal_order=(1, 1, 2, 12), simple_differencing=False)
SARIMA_model_fit = SARIMA_model.fit(disp=False)

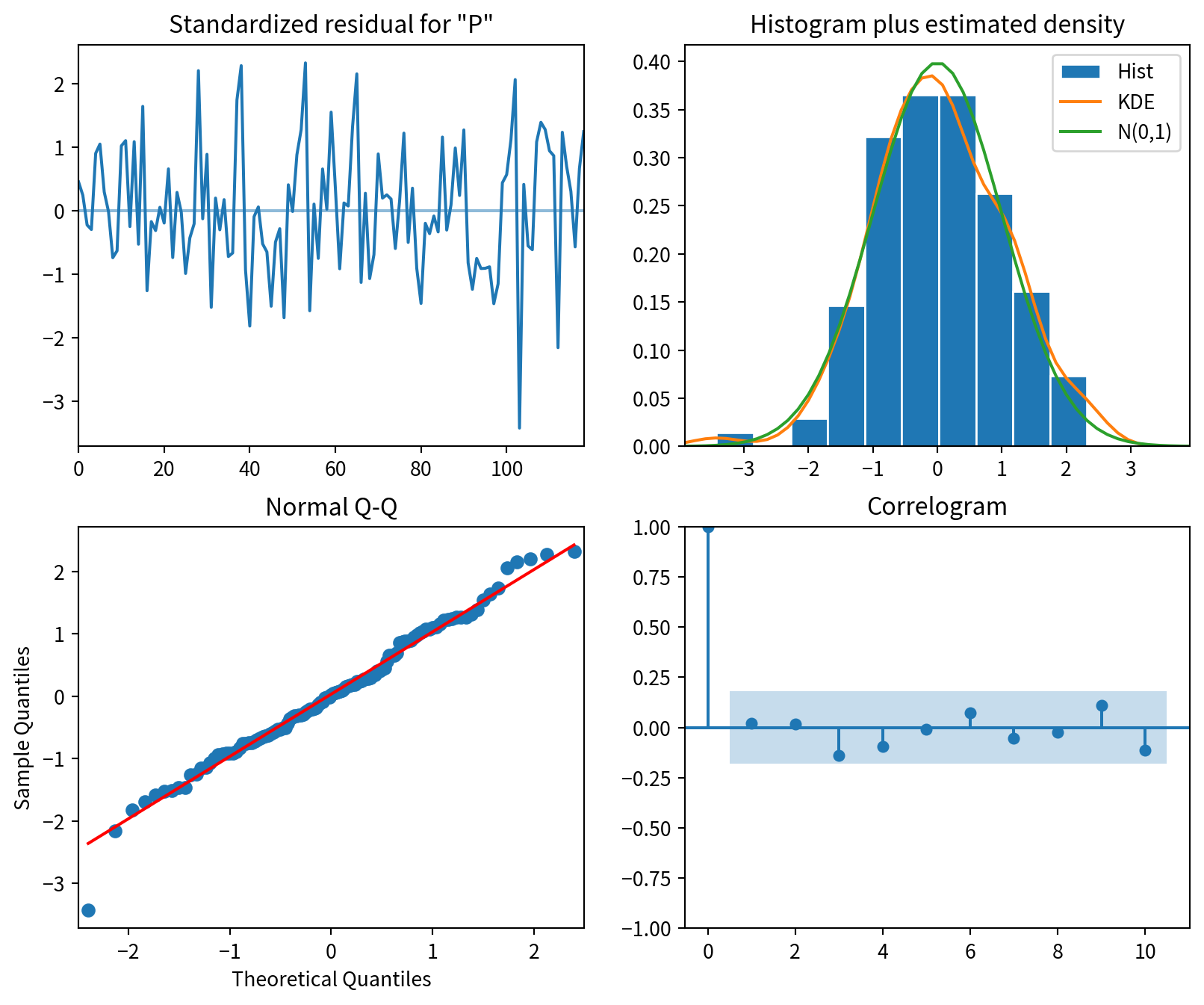

SARIMA_model_fit.plot_diagnostics(figsize=(10, 8))
plt.show()

from statsmodels.stats.diagnostic import acorr_ljungbox

tr = acorr_ljungbox(SARIMA_model_fit.resid, np.arange(1, 11))
tr

	lb_stat	lb_pvalue
1	0.004785	0.944850
2	0.745422	0.688864
3	1.021040	0.796161
4	1.226086	0.873785
5	1.436408	0.920290
6	1.711782	0.944208
7	2.307234	0.940900
8	2.717276	0.950829
9	2.733486	0.973931
10	4.969176	0.893228

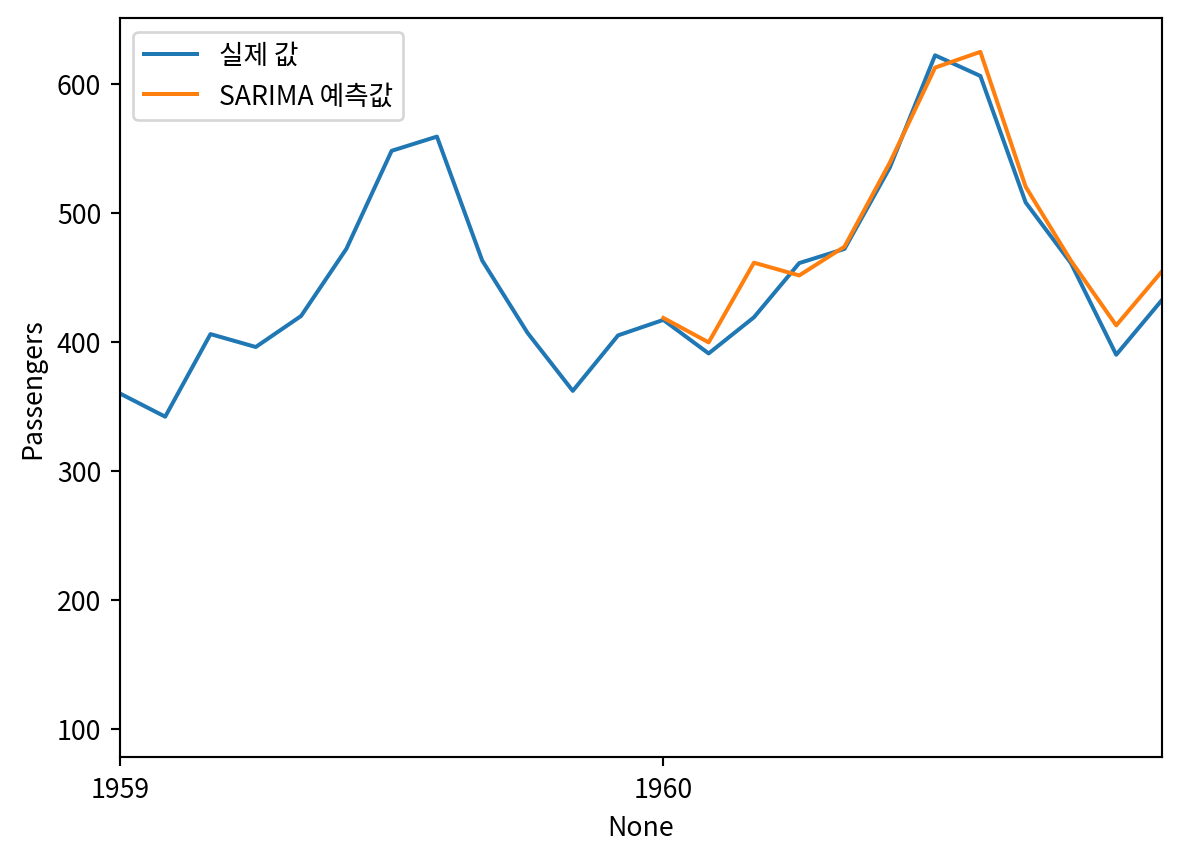

SARIMA_pred = SARIMA_model_fit.get_prediction(132, 143).predicted_mean

test['SARIMA_pred'] = SARIMA_pred

sns.lineplot(data=df, x=df.index, y='Passengers', label='실제 값')
sns.lineplot(data=test, x=test.index, y='SARIMA_pred', label='SARIMA 예측값')
plt.xticks(np.arange(0, 145, 12), np.arange(1949, 1962, 1))
plt.xlim(120, 143)
